Ameristar heat pumps are designed with high-quality, durable components, and tested all-aluminum coils to ensure long-lasting performance and reliability. Air Conditioners and Heat Pumps: When the mercury is soaring, Ameristar performs like a champ. Our air conditioners are equipped with high-quality components and come in a full array of cooling capacities, suitable for any size space. Even on the hottest, stickiest days, you can be confident that you’ll be cool, dry, and comfortable throughout your home.
Warranty:
- Standard warranties apply.
- Standard parts, residential: ALL PARTS - 5 YEARS PARTS
- Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS
- Standard parts, commercial: ALL PARTS - 5 YEARS PARTS
- Registered parts, residential: ALL PARTS - 10 YEARS PARTS
- Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS
- Registered parts, commercial: ALL PARTS - 5 YEARS PARTS
Product information
| Model | A4AH4E36A1C30 |
|---|
| UPC | 647535893556 |
|---|

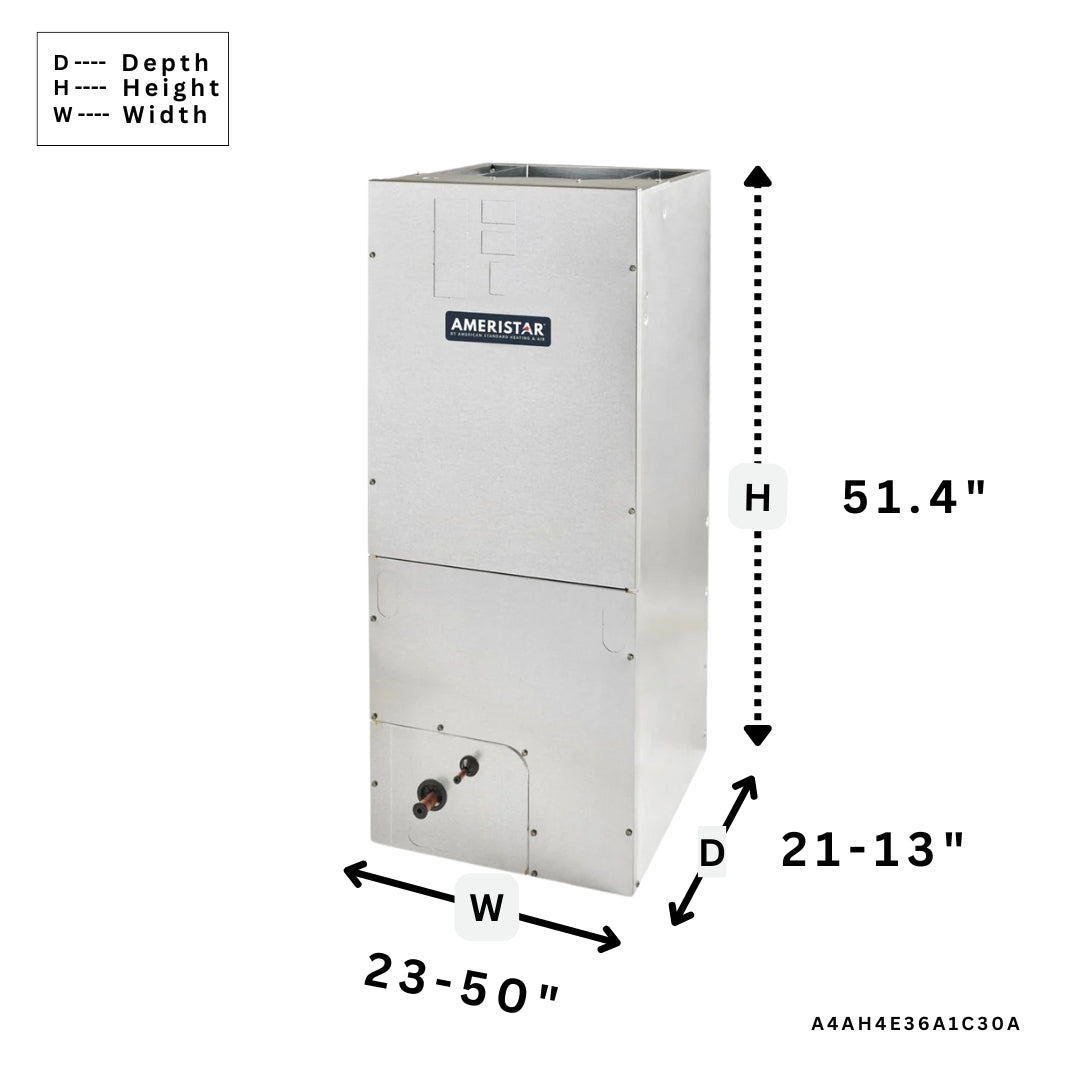

| Product Height (in) | 51.4 |
|---|
| Configuration | Floor Mounted |
|---|
| Product Length (in) | 21.13 |
|---|
| Air Flow Direction | Downflow, Horizontal, Upflow |
|---|
| Product Width (in) | 23.5 |
|---|
| Blower Motor | Variable Speed |
|---|
| Cooling Capacity | 3 Ton |
|---|
| Electrical Phase | 1-Phase |
|---|
| Heat Strip Compatibility | Up to 15 kW |
|---|
| Line Set Connection Type | Sweat |
|---|
| Liquid Line Size | 3/8 inch |
|---|
| Max Overcurrent Protection | 15 amps |
|---|
| Weight (lbs) | 155.000000 |
|---|
| R-410a |
|---|
| Suction Line Size | 7/8 inch |
|---|
| System Application Type | Central Split Systems |
|---|
| Voltage | 240 |
|---|
