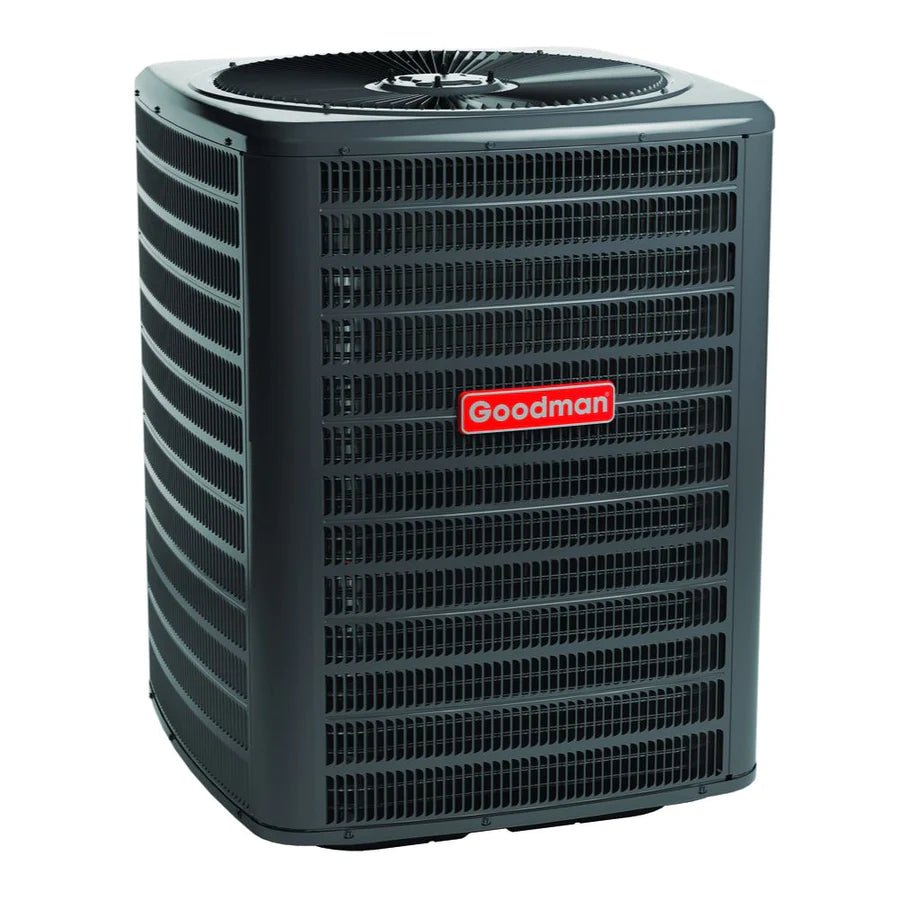

Outdoor: GSZB403610
Goodman Specifications Sheet Click
Specifications:
Energy-efficient compressor
Enhanced aluminium fin coil with 5 mm diameter copper tubes in 1.5- to 3.5-ton
Smart Shift® technology to ensure quiet reliable defrost
Single-speed PSC condenser fan motor
High and low-pressure switches
High density compressor sound blanket (1.5-2.0T)
Factory-installed hard start kits (1.5-2.0T)
Factory-installed compressor crank case heater
Factory-installed high-capacity muffler
Factory installed suction line accumulator
Factory installed bi-flow filter driery-efficient compressor
Warranty:
Standard warranties apply.
Standard parts, residential: ALL PARTS - 5 YEARS PARTS
Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS
Standard parts, commercial: ALL PARTS - 5 YEARS PARTS
Registered parts, residential: ALL PARTS - 10 YEARS PARTS
Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS
Registered parts, commercial: ALL PARTS - 10 YEARS PARTS
Product Attributes
Brand: Goodman
Cabinet Features:
Removable grill-style top design compliant with UL 60335-2-40
Increased airflow and enhanced air movement via new, optimized venturi rings
Steel louver coil guard
Heavy-gauge galvanized-steel cabinet
Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
Top and side maintenance access
When properly anchored, it meets the 2020 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Class: Split Heat Pump
Compressor Stages: Single Stage
Compressor Type: Scroll
Cooling Capacity Rated: 34400
Unit Depth: 35.5
Unit Height: 39.6095
Unit Width: 35.5
Family Description: Energy-Efficient Split System Heat Pump, 14.3 SEER2 and 7.5 HSPF2, 1-1/2 to 5 Tons
Heating Capacity Rated: 34400
Max. Voltage: 253
Min. Voltage: 197
Model Efficiency: 14.3 SEER2
Power Frequency: 60
Power Phase: 1
Power Voltage: 208/230
Product Benefits: Meets the 2023 M1 Test Standards
Category: Split Heat Pump
Family: GSZB4
Prop65 Label Required: TRUE
Refrigerant: R-410A
Tonnage: 3 tons
Unit Type: Outdoor
Suction Valve Outside Diameter: 7/8
Unit Weight: 214
DOCUMENTS:
SM-RS6621008.pdf (daikincloud.io)
