FURNACE: GM9S960804CN
Specifications:
- Heavy-duty aluminized-steel tubular heat exchanger
- Stainless-steel sloped secondary heat exchanger
- Silicon Nitride igniter
- Color-coded low-voltage terminals
- Multi-speed ECM blower motor with continuous fan speed
- Fault code LED Output
- AHRI Certified - ETL Listed
- Energy Star
- Single-Stage gas Valve
- Furnace control board with self-diagnostics and provisions for electronic air cleaner and 120-volt or 24-volt humidifiers
- Low constant fan speed circulates air throughout the home
- High static
- All models comply with California Ultra-Low N0x 14 ng/J
Warranty:
Standard warranties apply.
Standard parts, residential: ALL PARTS - 5 YEARS PARTS
HEAT EXCHANGER - 20 YEARS PARTS
Standard parts, multi-family: HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 5 YEARS PARTS
Standard parts, commercial: HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 5 YEARS PARTS
Registered parts, residential: HEAT EXCHANGER - 20 YEARS PARTS
HEAT EXCHANGER - 79 YEARS PARTS
ALL PARTS - 10 YEARS PARTS
HEAT EXCHANGER - LIFETIME PARTS
ALL PARTS - 10 YEARS PARTS
Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS
HEAT EXCHANGER - 20 YEARS PARTS
Registered parts, commercial: ALL PARTS - 10 YEARS PARTS
HEAT EXCHANGER - 20 YEARS PARTS
Product Attributes:
AFUE: 96
Airflow Rate High Heating: 1200
Brand: Goodman
Class: Gas Furnace
Unit Depth: 28
Unit Height: 33-3/8
Unit Width: 17-1/2
Family Description: Single-Stage Multi-Speed ECM Gas Furnace Up to 96% AFUE
High-Fire Input Capacity: 80000
High-Fire Output Capacity: 57660
Min. Circuit: 10.3
Model Efficiency: 0.96
Motor Speed Type: Nine Speed ECM
Power Frequency: 60
Power Phase: 1
Power Voltage: 115
Product Benefits:
- High reliability and quality
- Faster condensate water drainage and no unit water leakage
- Durable and long igniter life
- Provisions for electronic air cleaner and humidifier
- Energy Efficient and quiet circulation
- Self-diagnostic control board with constant memory
- Meets the performance requirements for AHRI certification and complies with ETL North American safety standards.
- Tax Credit
- Simple installation and setup
- Easy Connection for EAC and Humidifier
- Extra option for Air flow
- High static airflow capability
- Lower NOx emission
Category: Gas Furnace
Family: GM9S96
Prop65 Label Required: TRUE
Unit Type: Indoor
Unit Weight: 111
DOCUMENTS:
COIL: CHPT4860D4
Specifications:
Compact and lightweight all-aluminum evaporator coil with AlumaFin7™ technology
Optimized for use with R-401A refrigerant
Factory-installed thermal expansion valves for cooling applications
Rust resistant, thermoplastic drain pans featuring a low water-retention design
Foil-faced insulation covers the internal casing to reduce cabinet condensation
Single-piece access panel with tight seal helps to keep conditioned air from escaping
Seal tight customized suction and liquid grommets for easy installation and removal
21" depth for easier attic access
Horizontal application
AHRI certified
ETL Listed
Warranty:
Standard warranties apply.
Standard parts, residential: ALL PARTS - 5 YEARS PARTS
Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS
Standard parts, commercial: ALL PARTS - 5 YEARS PARTS
Registered parts, residential: ALL PARTS - 10 YEARS PARTS
Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS
Registered parts, commercial: ALL PARTS - 10 YEARS PARTS
Product Attributes:
Brand: Corporate
Class: Coil
Unit Depth: 26
Unit Height: 20
Unit Width: 32.50
Family Description: CHPTA AlumaFin7™ Evaporator Coil
Product Benefits: All-aluminum metallurgy provides superior corrosion resistance
Compatible with R-410A or R-22 refrigerant
Multi-louvered aluminum fin design helps support efficient heat transfer
Hydrophilic fins provide superior condensate management
7mm sized grooved aluminum tubing for enhanced turbulence of refrigerant
DecaBDE-free thermoplastic drain pan with secondary drain connections
Galvanized steel texture and parts used to help reduce corrosion on steel components
Category: Coil
Family: CHPTA
Prop65 Label Required: TRUE
Refrigerant: R-410A
Tonnage: 3 tons
Unit Type: Indoor
Unit Weight: 66
DOCUMENTS:
NOM-PF-2023_Nomenclature-G.pdf (daikincloud.io)
NOM-PF-2023_Nomenclature-A_11-.pdf (daikincloud.io)
266941661.pdf (daikincloud.io)
NOM-PF-2023_Nomenclature_04-22.pdf (daikincloud.io)
PWGFURNSUNTA.pdf (daikincloud.io)
IM-IOG-2031.pdf (daikincloud.io)
PB-CB-GM9S80.pdf (daikincloud.io)
SS-GM9S80_GC9S80.pdf (daikincloud.io)
SM-RS6621008.pdf (daikincloud.io)

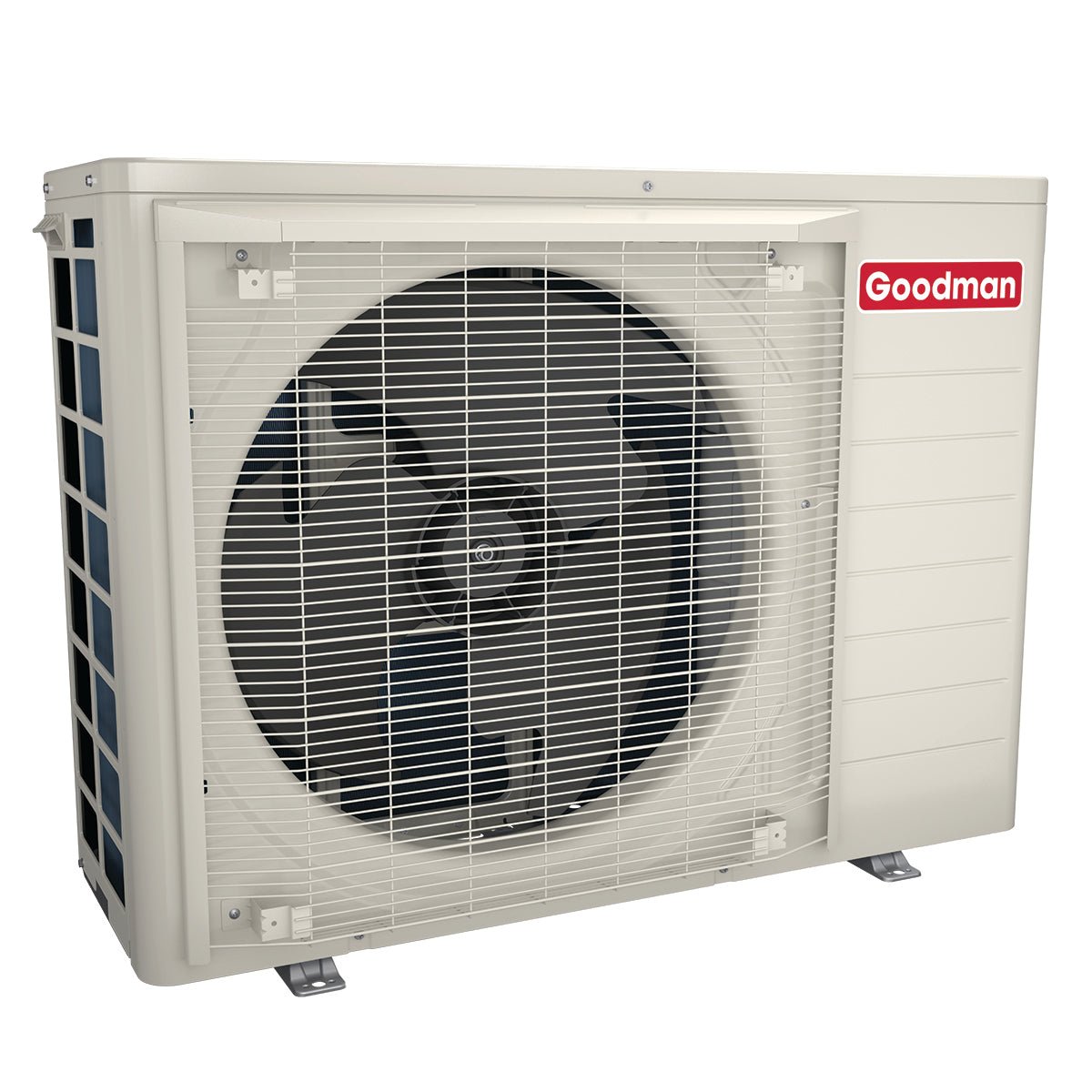

OUTDOOR: GSXN403610
Specifications
Energy-efficient compressor
Copper tube/enahnaced aluminum fin coil-5mm diameter on 1.5-4.0 Ton
Factory-installed filter drier
Fully charged for 15' of tubing length
Service valvess with sweat connections and easy-to-access guage ports
Contactor with lug connection
Ground lug connection
AHRI Certified
ETL Tested
Warranty
Standard warranties apply.
Standard parts, residential: ALL PARTS - 5 YEARS PARTS
Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS
Standard parts, commercial: ALL PARTS - 5 YEARS PARTS
Registered parts, residential: ALL PARTS - 10 YEARS PARTS
Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS
Registered parts, commercial: ALL PARTS - 10 YEARS PARTS
Product Attributes
Brand:
Goodman
Cabinet Features:
Removable grille-style top designcompliant with UL 60335-2-40
Venturi for increased velocity of airflow
Heavy-gauge galvanized-steel cabinet
Attractive Architectural Gray powder-paintfinish with 500-hour salt-spray approval
Steel louver coil guard
Rust-resistant coated screws
Single-panel access to controls with spaceprovided for field-installed accessories
When properly anchored, meets the 2020 FloridaBuilding Code unit integrity requirements forhurricane-type winds (Anchor bracket kits available.)
Class: Split Air Conditioner
Compressor Stages: Single Stage
Compressor Type: Rotary
Unit Depth: 29
Unit Height: 39.5
Unit Width: 29
Family Description:
Energy-Efficient Split System Air Conditioner, 13.3 SEER2, 1.5 to 5 Ton
Max. Voltage: 253
Min. Circuit: 17.0
Min. Voltage: 197
Model Efficiency: 14.3 SEER2
Motor Speed Type: PSC
Power Frequency: 60
Power Phase: 1
Power Voltage: 208/230
Product Benefits: Meets the 2023 M1 Test Standards
Category: Split Air Conditioner
Family: GSXN4
Prop65 Label Required: TRUE
Tonnage: 2.5 tons
Unit Type: Outdoor
Unit Weight: 180
