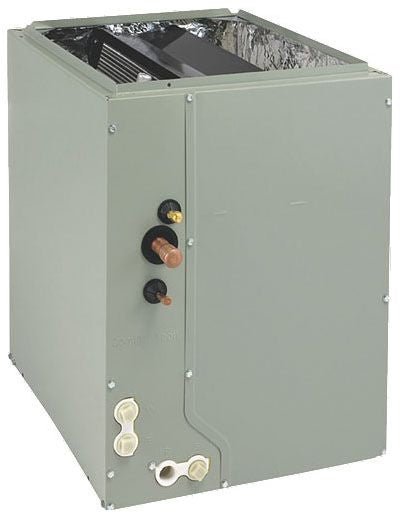

Model: 4TXCB003DS3HC
Description:
Heat Pump Evaporator Coil; Item Evaporator Coil, Direct Expansion, Plate Fin, Convertible Upflow/Downflow Left/Right Air Flow, High Efficiency, Cased, Type A; Size 17-1/2 Inch Width x 21-1/2 Inch Depth x 17-5/8 Inch Height; Material Aluminum; Used On Item Split System Heat Pump; Refrigerant Type R-410A; Connection Type Brazed; Cooling Capacity 3000 BTU; Line Size 3/4 Inch (Gas), 3/8 Inch (Liquid); Tube Size 3/8 Inch; Drain Connection 3/4 Inch Threaded; Number of Rows 3; Fin per Inch 14; Face Area 3.5 Square Foot; Refrigerant Control Non-Bleed Thermostatic Expansion Valve; Includes Drain Pan
Specifications:
Brand
American Standard Heating & Air Conditioning
Cooling Capacity
Family
Item
Evaporator Coil, Direct Expansion, Plate Fin, Convertible Upflow/Downflow Left/Right Air Flow, High Efficiency, Cased, Type A
Size
17-1/2 Inch Width X 21-1/2 Inch Depth X 17-5/8 Inch Height
Used On Item
Split System Heat Pump
Documents:
