Gas Furnace; Type 1-Stage, Serial Controlled, Upflow/Downflow/Horizontal Left/Right, Standard System, Multi-Position; Btu per Hour 60000; Capacity 707 to 2047 CFM at 0.1 Inch WC; Control Type Thermostat; Size 17.5 Inch Width x 28.75 Inch Depth x 34 Inch Height; Vent Size 4 Inch Diameter; Inclusion/Features Direct Drive Blower, High Velocity Filter, Centrifugal Combustion Fan, Multi-Port Inshot Burner, 120 Volt Silicon Nitride Igniter Pilot Safety Device, 20 Gauge Stainless Steel Heat Exchanger, Heavy Gauge Steel/Wrap Around Cabinet; Voltage Rating 120 Volt AC 60 Hertz 1-Phase; Current Rating 9.2 Amp FLA (Blower Drive), 1.39 Amp FLA (Combustion Fan), 15 Amp (MOP); Motor Power Rating 3/4 HP (Blower Drive); Nominal Cooling Capacity 4 Ton; Motor Type Constant Torque ECM; Fuel Type Natural Gas; Blower Dimension 11 Inch Diameter x 8 Inch Width; Number of Speed 9; Motor Speed Rating 1075 RPM (Blower Drive), 3300 RPM (Combustion Fan); Number of Burner 3; Pipe Connection Size 1/2 Inch; AFUE Rating 80 Percent (Non-Condensing); Temperature Rating 30 to 60 Deg F; Applicable Standard ETL (Canada and US), ANSI Z21.47/CSA 2.3, ASHRAE 193
Specifications:
Brand
Ameristar Heating And Cooling
BTU Input
Capacity
707 To 2047 CFM At 0.1 Inch WC
Efficiency
Family
Orientation
Size

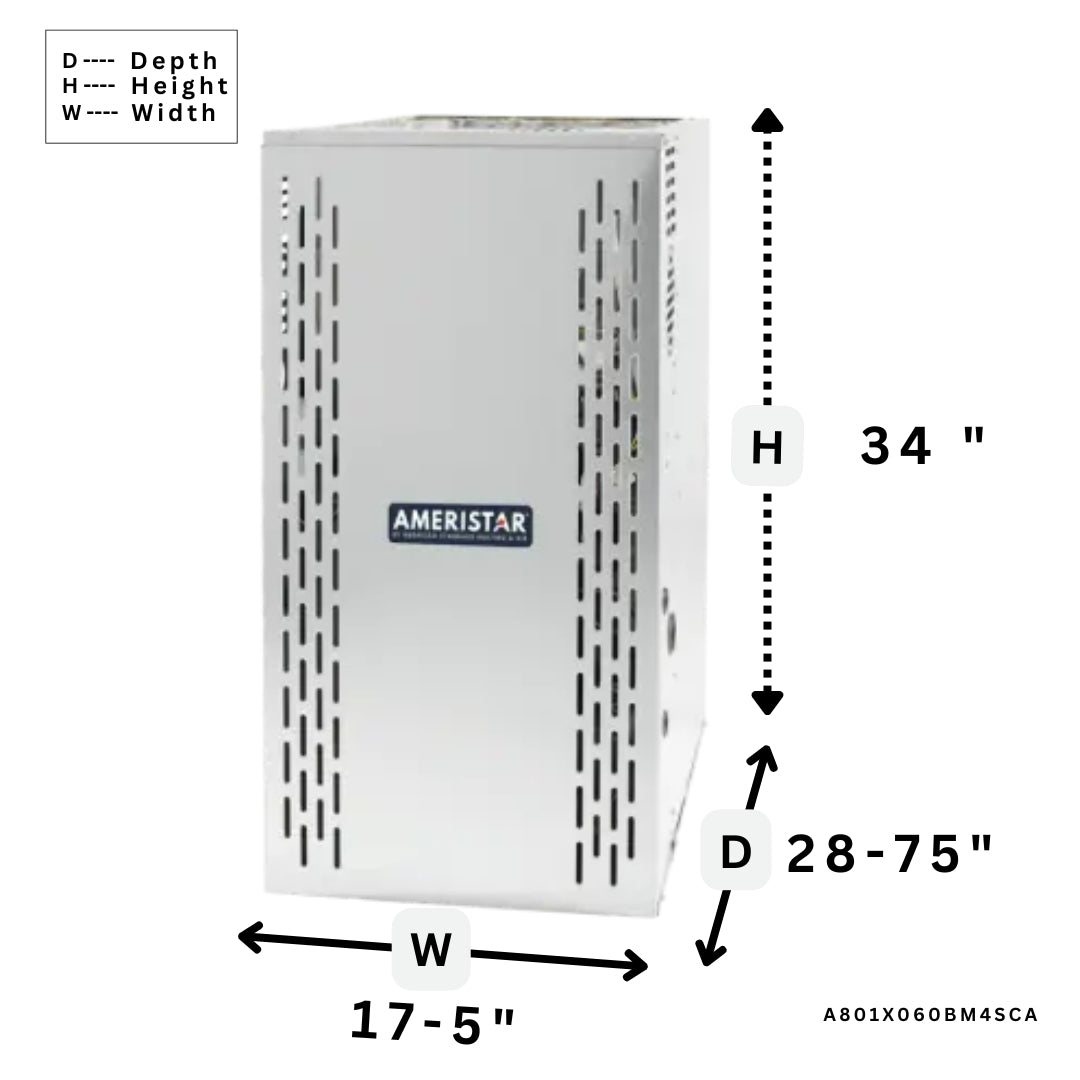

17.5 Inch Width X 28.75 Inch Depth X 34 Inch Height
Type
1-Stage, Serial Controlled, Upflow/Downflow/Horizontal Left/Right, Standard System, Multi-Position
Vent Size
